Online Ups 3 Phase Input 3 Phase Output
TYPE |

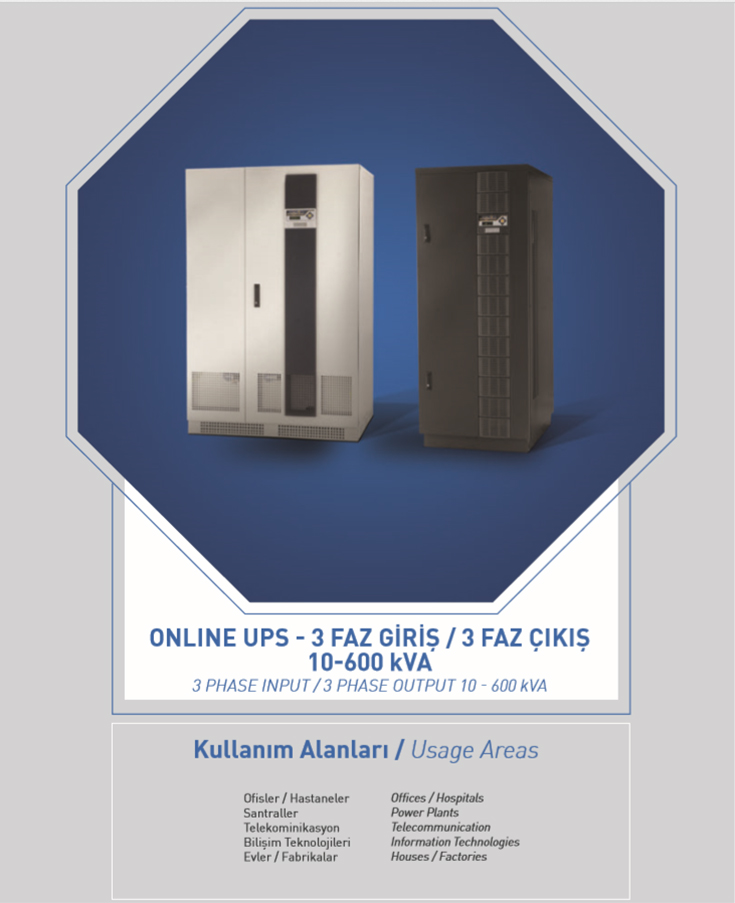

Online Ups 3 Phase Input / 3 Phase Output 10-600 kVA |
Input |
|
Input Phase Number |
3 Phase 270 VAC - 380 VAC |
Input Phase Voltage Tolerance |
± % 10 |
Input Frequency |
50 - 60 Hz |
Input Power Factor |
> 98 % |
OUTPUT |
|
Output Power |
10 kVA – up to 600 kVA |
Output Voltage |
220 - 380 VAC ( 240-415 VAC optional ) |
Power Factor |
0,8 |
THD (on 100% linear load) |
< % 3, (on non linear load: <%5) |
Efficiency |
< % 94 |
Overload Protection |
On % 100 - % 125 load: 10 min. | on % 125 - % 150 load: 1 min. | on %150 load: static bypass |
GENERAL |
|
Working Temperature |
0 / 40 °C |
Protection Class |
IP 20 |
User Interface |
LCD panel, small led panel, 5 vector button, touchscreen with graphic colored (optional) |
Inputs |
Emergency closure input (EPO), interactive battery panel input, generator input |
Alarm Registration |
Standard time calendar 192 incidents (optional 512 incidents |
Software |
Standart AG Soft UPS administrative software ( 3 users + 1 server administration ) |
BATTERY |
|
Battery Type |
Full closed, dry-type, maintenance free battery |
Battery Working Temperature |
< 25 °C |
Battery Test |
Standard |
Battery Protection |
Automatic circuit breaker |
PROTECTIONS |
|
Protections |
Short circuit, overtemperature, overload, high voltage, battery level low |
COMMUNICATION |
|
Interface Communication Portal |
2 X RS-232 serial port, 4 standard and 8 optional dry alarm switch |
MEASUREMENTS |
|||
POWER |
G(mm) |
D (mm) |
H (mm) |
10 - 20 kVA |
425 |
800 |
1040 |
30 - 100 kVA |
515 |
840 |
1440 |
100 - 200 kVA |
775 |
910 |
1900 |
200 - 600 kVA |
890 |
1150 |
1900 |
