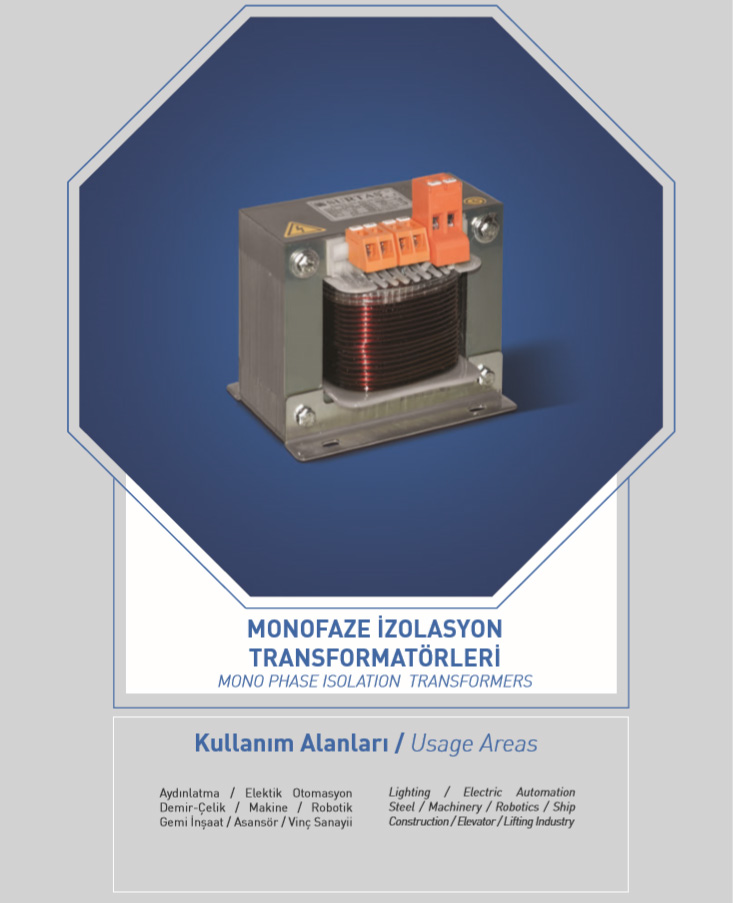

Mono-phase Isolation Transformers
Safety-Insulation Transformer Specifications
Input Voltage Range : 5V-1000V
Output Voltage Range : 1V-50V
Type : Open Type
Protection Class : IP00
Safety Class : 1st Class
Thermal Classification : T40/B
Conforming Standards : EN 60742 - EN61558 - 2-2 2-6
Safety-Insulation Transformers are special transformers designed for implementations where human health could be at risk. Their primary feature is high insulation barriers between the coils and the core. They are widely used in low Voltage (adaptors, chargers etc.) implementations where human health could be at risk. As Surtaş we offer our customers Safety-Insulation transformers having the desired values with CE certificates.
|

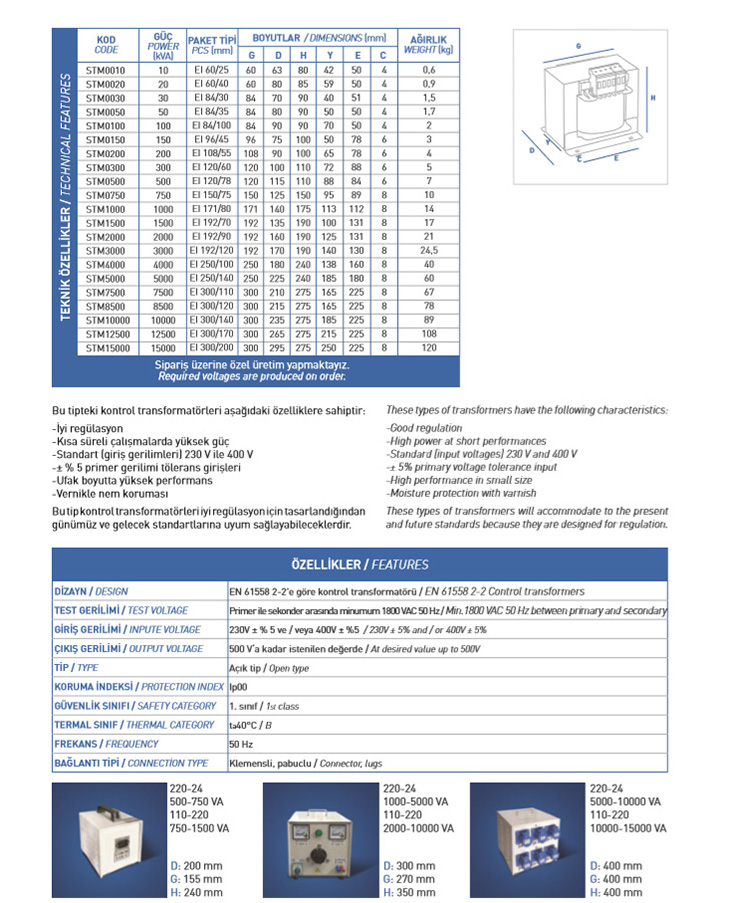

Mono-phase Transformers | Technical Specifications |
|
30VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
50VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
100VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|

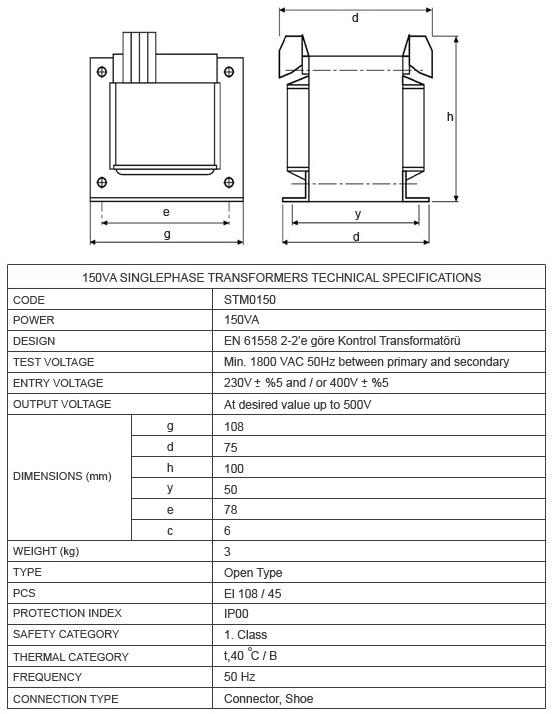

150VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|

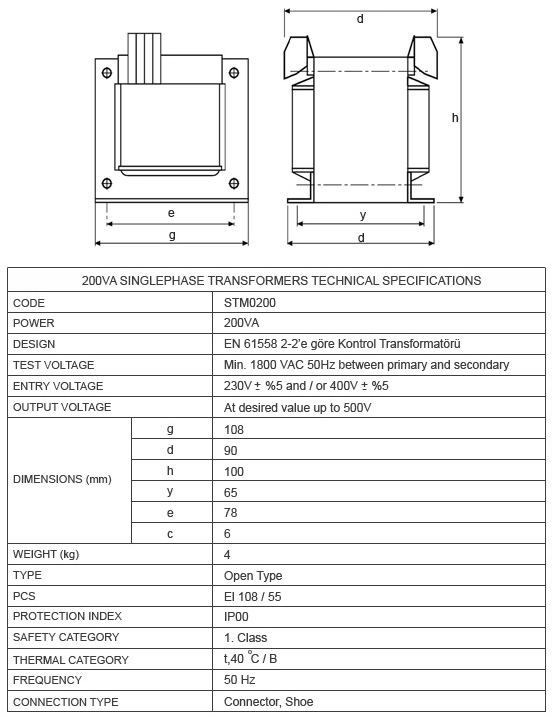

200VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
300VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
500VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
750VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
1000VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|

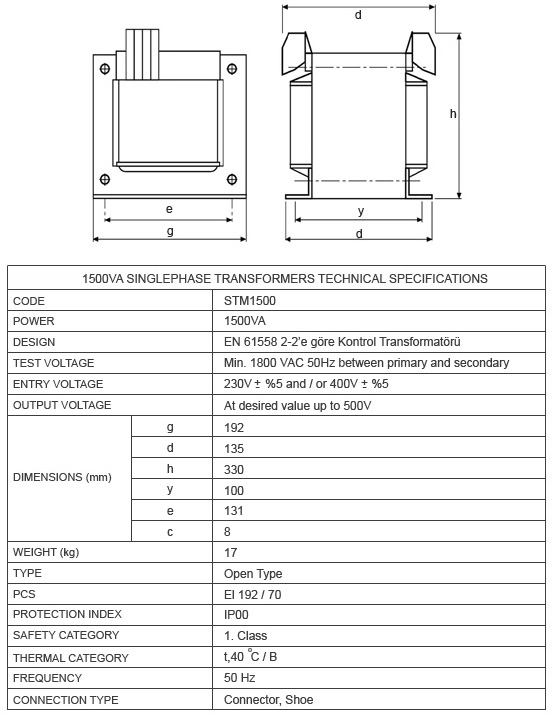

1500VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
2000VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|

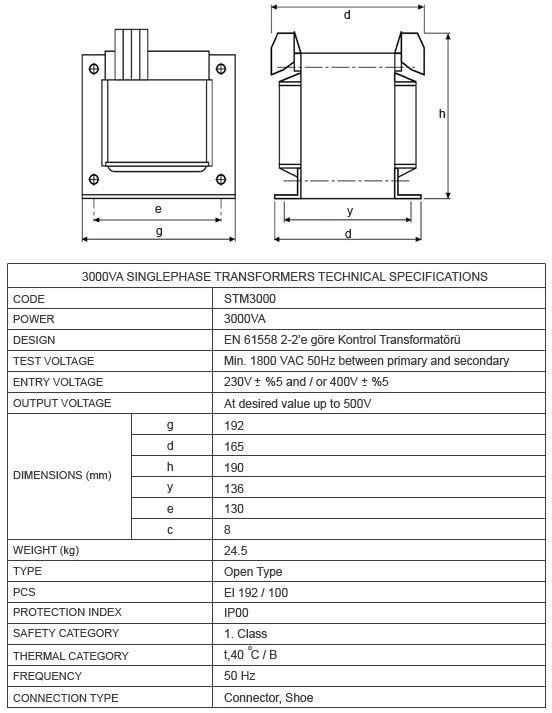

3000VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|
4000VA Mono-phase Transformer Technical Specifications | Technical Specifications |
|
|

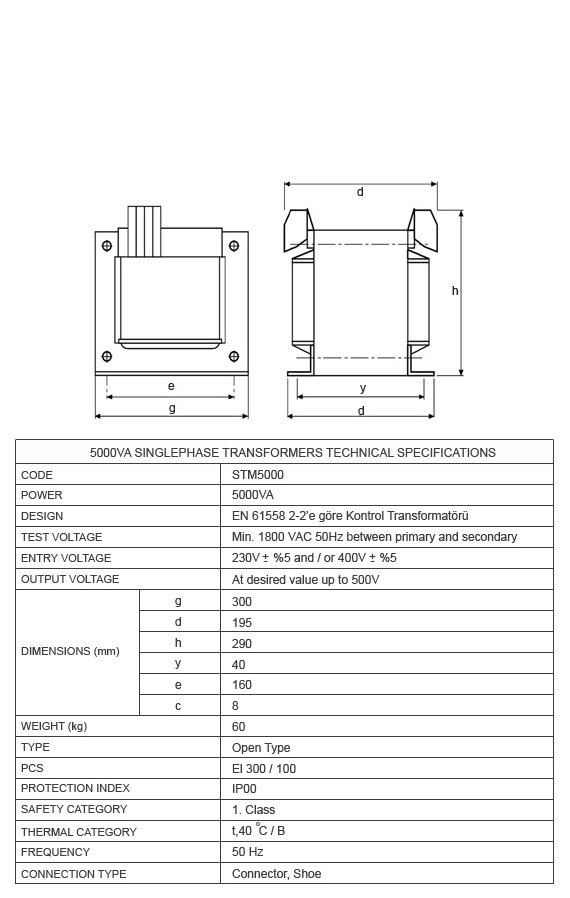

5000VA Mono-phase Transformer Technical Specifications | Technical Specifications |
Control Type Transformer Specifications
Input Voltage Range : 5V-1000V
Output Voltage Range : 5V-1000V
Type : Open Type
Protection Class : IP00
Safety Class : 1st Class
Thermal Classification : T40/B
Conforming Standards : EN 61558 2-2
Control Transformers are special transformers designed for conditions where output Voltage value is required to be always within specific ranges. Maximum regulation value is 10% and maximum Voltage deviation value is 5%. They are widely used in implementations where sensitive Voltage range (all electrical distribution switchboard implementations) is required and human health is NOTEE primarily at risk. As Surtaş we offer our customers control transformers having the desired values with CE certificates.
