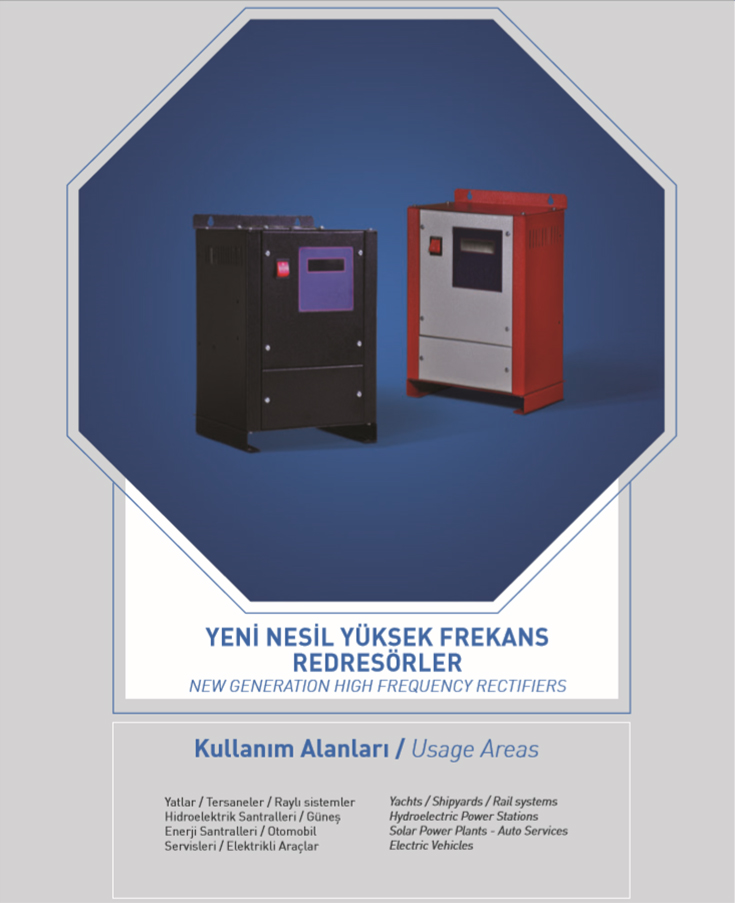

New Generation High Frequency Rectifiers

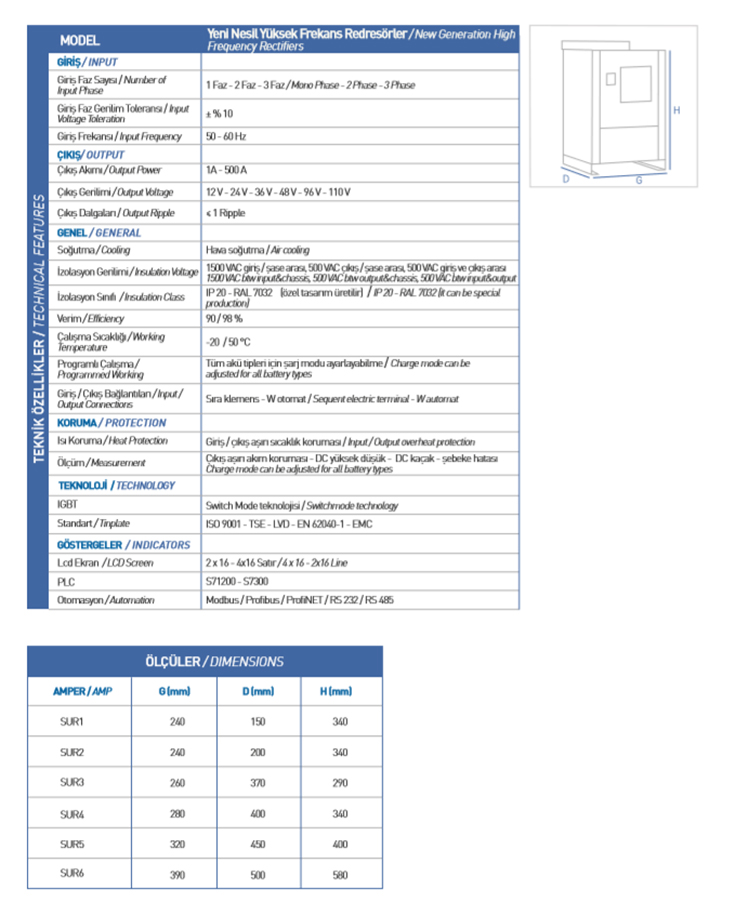

TYPE |
New Generation High Frequency Rectifiers |
Input |
|
Input Phase Number |
1 Phase - 2 Phase - 3 Phase |
Input Phase Voltage Tolerance |
± % 10 |
Input Frequency |
50 - 60 Hz |
OUTPUT |
|
Output Current |
1A - 500 A |
Output Voltage |
12 V - 24 V - 36 V - 48 V - 96 V - 110 V |
Output Waveform |
≤ 1 Ripple |
GENERAL |
|
Cooling |
Air cooling |
Isolation Voltage |
1500 VAC input / chassis interface, 500 VAC output / chassis interface, 500 VAC input&output |
Isolation Class |
IP 20 - RAL 7032 (produced as special design) |
Efficiency |
90 / 98 % |
Working Temperature |
-20 / 50 °C |
Systematical Operation |
Adjusting charge mode for any kind of battery |
Input / Output Connections |
Terminal block - W automat |
PROTECTION |
|
Heat Protection |
Input / output over temperature protection |
Measure |
Output over current protection – DC high low – DC leakage – electric network error |
TECHNOLOGY |
|
IGBT |
Switch Mode technology |
Standard |
ISO 9001 - TSE - LVD - EN 62040-1 - EMC |
INDICATORS |
|
Lcd Screen |
2 x 16 - 4x16 Line |
PLC |
S71200 - S7300 |
Automation |
Modbus / Profibus / ProfiNET / RS 232 / RS 485 |
MEASUREMENTS |
|||
AMP |
G(mm) |
D (mm) |
H (mm) |
SUR1 |
240 |
150 |
340 |
SUR2 |
240 |
200 |
340 |
SUR3 |
260 |
370 |
290 |
SUR4 |
280 |
400 |
340 |
SUR5 |
320 |
450 |
400 |
SUR6 |
390 |
500 |
580 |
