Bar 24 - 2x18 AH Pavilion Rectifier

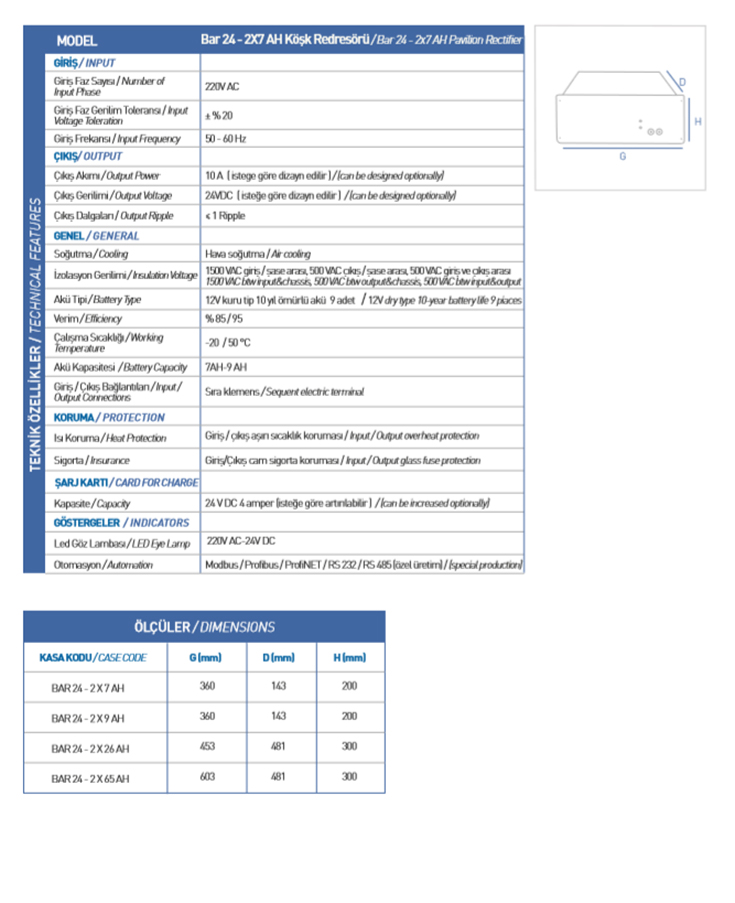

TYPE |
Bar 24 - 2X7 AH Pavilion Rectifier |
Input |
|
Input Phase Number |
220V AC |
Input Phase Voltage Tolerance |
± % 20 |
Input Frequency |
50 - 60 Hz |
OUTPUT |
|
Output Current |
10 A ( designed arbitrarily ) |
Output Voltage |
24VDC ( designed arbitrarily ) |
Output Waveform |
≤ 1 Ripple |
GENERAL |
|
Cooling |
Air cooling |
Isolation Voltage |
1500 VAC input / chassis interface, 500 VAC output / chassis interface, 500 VAC input&output |
Battery Type |
9 pcs batteries 10 year durable 12V dry type |
Efficiency |
% 85 / 95 |
Working Temperature |
-20 / 50 °C |
Battery Capacity |
7AH-9 AH |
Input / Output Connections |
Terminal Block |
PROTECTION |
|
Heat Protection |
Input / output overtemperature protection |
Fuse |
Input/Output glass fuse protection |
CHARGING BOARD |
|
Capacity |
24 V DC 4 amp (expandable if desired ) |
INDICATORS |
|
Led Indicator Lamp |
220V AC-24V DC |
Automation |
Modbus / Profibus / ProfiNET / RS 232 / RS 485 (special production) |
MEASUREMENTS |
|||
SAFE CODE |
G(mm) |
D (mm) |
H (mm) |
BAR 24 - 2 X 7 AH |
360 |
143 |
200 |
BAR 24 - 2 X 9 AH |
360 |
143 |
200 |
BAR 24 - 2 X 26 AH |
453 |
481 |
300 |
BAR 24 - 2 X 65 AH |
603 |
481 |
300 |
